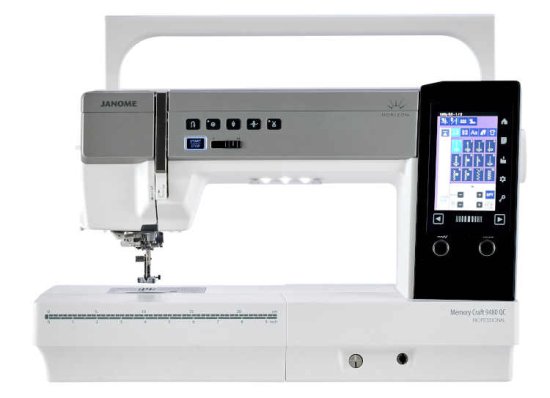

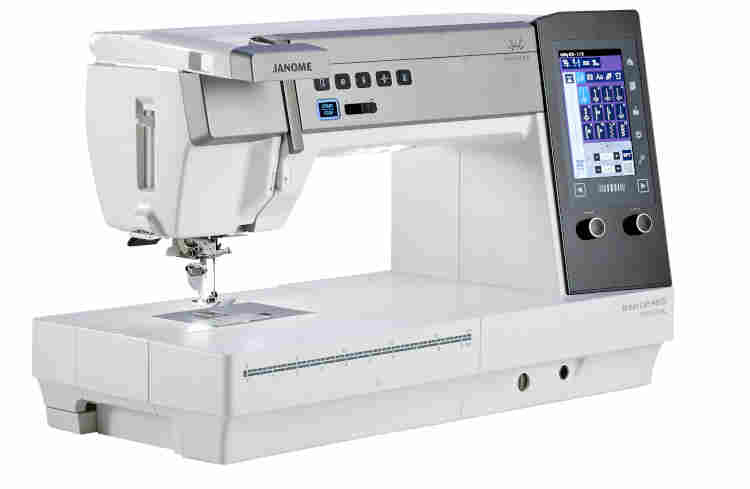

Janome Horizon Memory Craft 9480 QC Professional

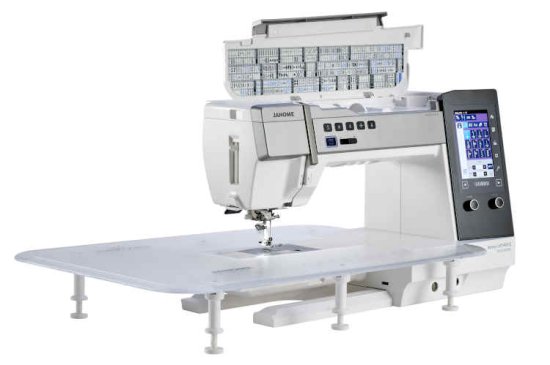

A fantastic new professional-level machine for quilters and other serious sewers. It has a great 280mm workspace and heaps of standard accessories including lots of feet and an extension table. It also has great software and a full-colour HD screen, allowing you to save time and effort setting things up just the way you want them!
Here's a video from Janome showing the machine's main features, and here's another from Jane Brogan giving a demonstration of why you'll love this machine.
Major Features:
• A.S.R.TM (Accurate Stitch Regulator) includes Ruler Work Foot
• Detachable AcuFeedTM Flex Layered Fabric Feeding System
• Professional Grade Foot (HP-2) & Needle Plate. (3 Plates included)
• 400 Stitches including 4 Alphabets. Stitch Tapering & Mirage Stitch
• Locking ON/OFF button for the beginning of Quilt Stitches
• 9-Hole cording foot
• Floating Mode for advanced detail work
• Dials for Fine tuning stitch width & length
• AcuSpark 2 (QR Code App) for learning & support
• PC Software Stitch Composer –
(Downloadable from Global site via QR code on the instruction manual)
Feature Details:
Computerised Sewing Machine

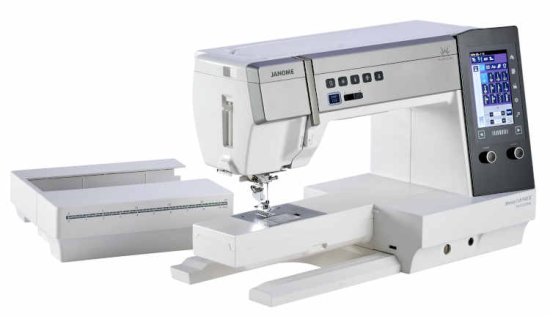

Free Arm / Flat Bed Conversion
Machine Size: W 535mm x H 326mm x D 243mm
Work space - Length 280mm x Height 120mm (11” x 4.7”)
Screen Type – LCD with Backlight, 108 x 64.8mm High -Def Colour TFT LCD (5”)
Automatic Tension Control
Automatic Presser Foot Lifter
Automatic Presser Foot Pressure (Fabric Thickness Detection)
Adjustable Foot Pressure
Automatic Thread Cutter (Scissors Button)
Pivot Feature (Automatic Foot Up)
A.S.R.™ (Accurate Stitch Regulator)
AcuSpark 2 (Application for Tablets)
AcuFeed System – Removeable Type, Twin & Single
Floating Mode
Mirage Stitches
400 Built-in Stitches
Monogramming - 4 font Inc. (9mm Block letters & numbers)
11 Auto 1 step Buttonholes
Memory for Stitch & Alphabet – 3mb Memory
Mirror Image (Horizontal)
Tapering Function
Speed Control Slider
Stop/Start Button
Auto Lock Key
Spool Pin (Horizontal)
Favourite Stitch Function
Retractable High Light
Horizontal Full Rotary Hook
Top Loading – Category D 9mm (High Shank)
Approximate Machine Weight: 13.7 kg.
Touch Panel LCD
Face Plate – Openable
Maximum Sewing Speed 1060spm – Straight Stitch
Maximum Sewing Speed 1000spm – Zigzag Stitch
Minimum Sewing Speed – 60spm
Maximum Bobbin Winder Speed 1,600rpm
Maximum Stitch Length: 5mm
Maximum Stitch Width: 9mm (91 needle positions)
Drop Feed – manual + Drop Feed Sensor
Feed Dogs – 7 Piece (same as CM7P)
Built-in Superior Needle Threader 2, Manual
LED Lights 9 in total – in 4 Places
Twin Needle capability
Easy Change Needle Plate (One Touch)
Carry Handle – Folding Type
Language Setting – 16 Languages
Top Cover (Flip – up Type)
Cover – Semi-Rigid (Black)
Stitch Composer
Pattern Elongation - up to 5 times
USB Port (for use with USB stick – NOT Direct Link)
Remote Thread - Cutter Port
World Voltage Power Supply
Origin – Made in Taiwan
Standard Accessories:
A.S.R. USB Cable for Stitch regulator
ASR-QC Closed-Toe Foot
ASR-QO Open-Toe Foot
ASR-QV Clear View Foot
ASR-QR Ruler Work Foot
Cosmetic Case (Resin)
Quick Start Guide
¼” Seam Foot (O)
¼” Seam Foot Without a Guide (O)
AcuFeed Flex Professional Grade Foot HP2
Auto Buttonhole Foot with Stabiliser Plate (R)
Blind Hem Foot (G)
Button Sewing Foot (T)
Button Shank Plate
Cloth Guide
Cover – Semi-rigid Cover (Black)
Darning / Emb Foot (PD-H) Closed Toe
Darning / Emb Foot (PD-H) Open Toe
Dual/AcuFeed Foot – Twin (AD)
Free motion quilting closed-toe foot (QC)
Free motion quilting open-toe foot (QO)
Free motion quilting zigzag foot (QV)
Foot Control – Large White
Power Lead
Professional Grade Foot HP
(Professional HP) Straight Stitch Needle Plate
Quilting Guide Bar
Remote Thread Cutting Unit & Plate
Ruler Work Foot (QR)
Rolled Hem Foot (D)
Satin Stitch Foot (F)
Satin Stitch Foot – Open Toe (F2)
Screwdriver (Winged)
Seam Ripper
Spool Holder (Large) x 2
Spool Holder (Small) x 2
Spool Holder (Special) x 2
Variable Zig Zag Foot (QZ)
Standard Foot (A)
Straight Stitch Needle Plate
Stylus
Zipper Foot (E)
1 x Packet Needles incl. Twin Needle x 1
Instruction Book
Bobbins x 4 plus one in machine
Instructional DVD – Downloadable
Stitch Composer – Downloadable
Optional Extras:
¼” Ruler Foot (9mm & 7mm for High Shank)
3-Way Cording Foot (H)
9-Hole Cording Foot (H2)
Acufeed ¼” Seam Foot (OD)
AcuFeed feed Zipper Foot (ED)
AcuFeed feed Foot & Holder – Single (VD)
AcuFeed ¼” Seam (Piecing Foot) (OD)
AcuFeed Ditch (SD)
AcuFeed feed open-toe Foot (UD)
AcuFeed Straight Stitch Foot (STD)
Appliqué Foot (AP)
Bi-Level Foot (BL)
Beading Foot (narrow) (L1)
Beading Foot (wide) (L2)
Bias Binder Foot (W)
Bobbin Holder for free motion quilting/hand look stitch
Border Guide Foot (FB)
Buttonhole Foot (B)
Buttonhole Foot & Stabilizer Plate - Large
Clear View Quilting Foot & Guide Set (OV)
Clear View ¼” Seam Foot (OM)
Circular Attachment
Conceal Zipper Foot (Z)
Convertible Free Motion Quilting Foot Set
Ditch Quilting Foot (S)
Edge Stitch Foot (SE)
Free Motion Couching Foot (FMC)
Gathering Foot (V)
Hemmer Foot (6mm) (D1)
Hemmer Foot (4mm) (D2)
HD Roller Foot
Lap Seam Foot (LS)
Long Quilting Guide Bar Set
Optic Magnifier (20,40,60 lenses)
Piping Foot (I)
Piping Foot (Narrow) (N2)
Pintucking Foot (wide) (N1)
Pintucking Foot (narrow) (N2)
Pintucking Cord Guides
Quilt Binder Set
Ribbon/Sequin Foot (RS)
Ruffler (RF)
Sliding Guide Foot (SG)
Straight Stitch Foot (ST)
Spool Stand (2 Thread) (Belt cover Side Mounting)
Spool Stand (2 Thread)
Spool Stand (5 Thread)
Tape Stand for Tape Binder/Wide Tape Binder
Taping Guide Foot (TG)
Ultra Guide Foot (U)
Ultra Guide Needle Plate & Foot Set
Zipper Foot (Adjustable)
